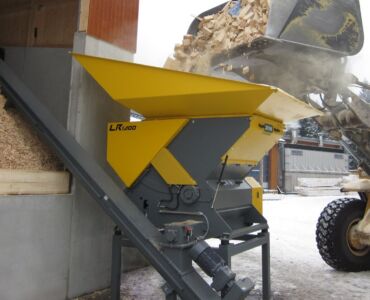

UNTHA LR Shredder

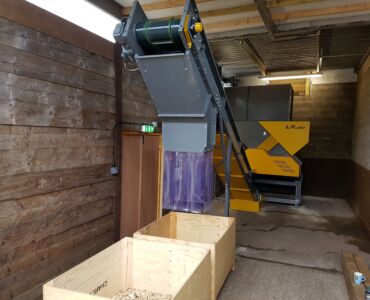

THE ULTIMATE WORKHORSE IN WOOD SHREDDING

A simple yet effective machine for high throughputs of wood, pallets, logs and chipboard shredding

Download Brochure
Focus Enviro | Specialists in material processing equipment
Focus Enviro | Specialists in material processing equipment

Introducing

Perfect for companies handling up to 12m³ an hour, this tough wood shredder is an effortlessly compact machine to run, with a wealth of shredding potential.

Despite a neat footprint, this robust equipment can tirelessly achieve uninterrupted high throughputs, thanks to its tried-and-tested LR Technology Package. The carefully engineered cutting system – complete with indexable cutters and holders, innovative cutter geometry and swing pusher – delivers continuous and efficient material feeding, by design. And a three-year warranty, supplied as standard, provides ongoing peace of mind that this level of uptime and availability will long be provided.

This savvy shredder then size reduces the wood down to a homogenous product perfect for either heat recovery or briquetting.

VIEW GALLERY

Key Highlights

Quick design feature overview

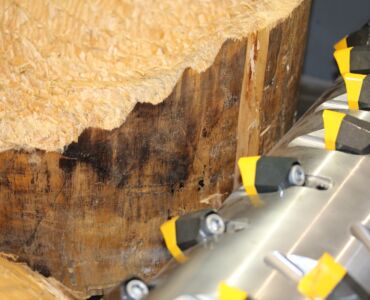

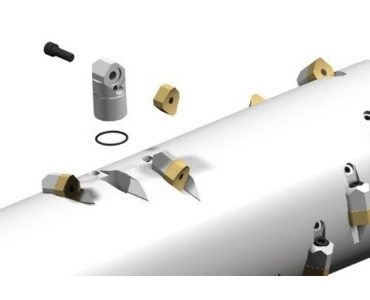

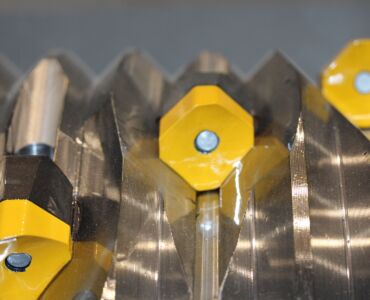

Tried-and-tested LR Technology Package with indexable cutters and cutter holders, innovative cutter geometry and wear-free swing pusher

‘Pull through’ cutting concept achieves precise shred with low power consumption

Engineered for high availability, e.g. high-quality bearings with long service life, reliable hydraulics, powerful drive and gearbox damping system

Operational simplicity by design, including user-friendly control panel, automatic foreign object detection and reverse function to prevent overloading

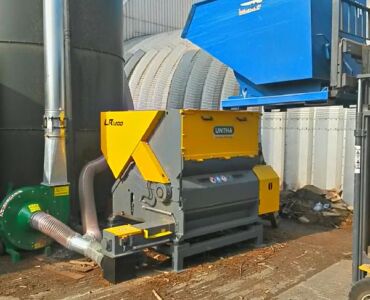

Supplied with extraction hood as standard, to help provide the cleanest possible environment for operators.

INPUT MATERIALS

  • 1

    Solid wood (incl logs)

  • 2

    Pallets

  • 3

    Bark (hardwood)

  • 4

    Chipboard

  • 5

    Veneer

  • 6

    MDF (medium density fibreboard)

  • 7

    Cardboard

Applications

Perfect for companies handling up to 12m³ and hour, a tough wood shredder that is an effortlessly compact machine to run with a wealth of potential…

  • Biomass

  • Cardboard

  • Wood

Specification

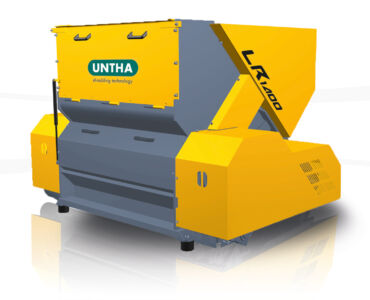

LR1000

  • Drive Power (kW)
  • Rotor Speed (rpm)
  • No. of indexable inserts
  • Rotor diameter (mm)
  • Charging hole (mm)
  • Perforated screen (mm)
  • Throughputs (cbm)
  • Dimensions HxWxD (mm) largest part
  • Weight (kg)
  • 22 | 30 | 2 x 18.5
  • 98
  • 27 | 54
  • 300
  • 1000 x 1050 | 1600¹ (¹ for 45° frames)
  • 15-40
  • 2-6
  • 1630 x 1761 | 2010 x 1704
  • 2400-2700

LR 1400

  • Drive Power (kW)
  • Rotor Speed (rpm)
  • No. of indexable inserts
  • Rotor diameter (mm)
  • Charging hole (mm)
  • Perforated screen (mm)
  • Throughputs (cbm)
  • Dimensions HxWxD (mm) largest part
  • Weight (kg)
  • 30 | 2 x 22
  • 98
  • 38 | 76
  • 300
  • 1400 x 1050 | 1600¹ (¹ for 45° frames)
  • 15-40
  • 4-8
  • 1645 x 2141 | 2406 x 1704
  • 2800-3500
