TSR80 Radial Stacker

The Perfect mobile stockpiling solution

Ability to self-propel across even the roughest terrains and the capacity to create massive radial stockpiles

Download Brochure
Focus Enviro | Specialists in material processing equipment
Focus Enviro | Specialists in material processing equipment

Introducing

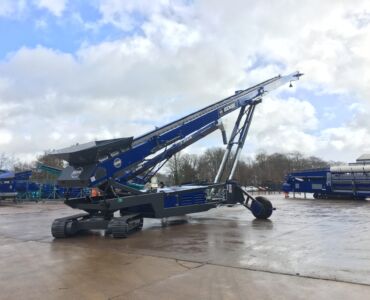

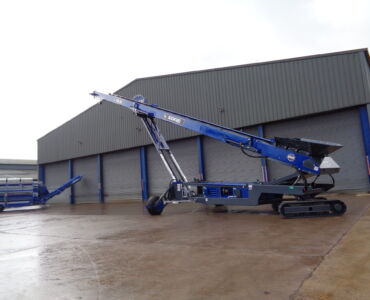

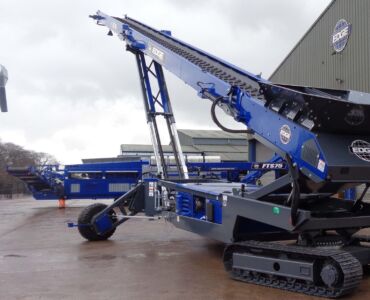

The EDGE TSR80 is an 80ft (24.3m) long, tracked mounted stacker with radial functionality. Essentially; the TSR80 Mobile Radial Stacker has packaged all the advantages of a mobile radial stacker and that of a tracked mounted stacker into one product. The TSR80 has the ability to self-propel across even the roughest terrains and the capacity to create massive radial stockpiles. It is the perfect stockpiling solution for operators who frequently reposition their processing plant or want a conveyor to fulfill several different roles on-site.

The TSR80 offers operators a host of design features such as a twin driven, 1200mm (48”) wide discharge conveyor, hydraulic variable feed in height, adjustable operating angle, automatic radial stockpiling programming and a quick transition from transport to operational mode.

The core design principal for the TSR80 Radial Stacker has been to provide customers with a conveyor that could create large radial stockpiles and can easily be transported both locally and around site with minimal fuss or cost. The TSR80 has been designed to fold down with it’s own power source and to drive onto a range of low boys and low loaders.

VIEW GALLERY

Key Highlights

Quick design feature overview

Download Brochure

Combines the ability to self-propel and the capacity to create massive radial stockpiles

Can be continually fed by any Primary / Secondary Crusher or Screener

1200mm (48”) wide discharge conveyor with a capacity of up to 1000 TPH

Swinging radial axle complete with hydraulic wheel drives

Optional fully automatic stockpiling system

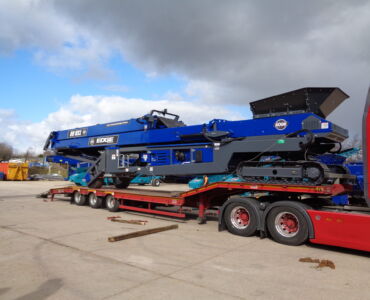

Transports easily via low loader or packed in container for shipping with minimal reassembly required

Applications

The TSR80 is an ideal solution when working with the following applications

  • Aggregate

  • C & D Waste

  • Compost

  • Mulch

  • Sand & Gravel

  • Topsoil

  • Wood

Specification

Weight: 18.7 Tonne (20.6UST)

  • Transport length: 15.7M (51'5")
  • Transport width: 2.2M (7'4")
  • Transport height: 3.4M (11')
  • Working length: 20.9M (68'6")
  • Working width: MAX. 6.5M (21'5)
  • Working height: 11.8M (38'10")
