RS1500 Roller Sizer

Mobile sizer, fines-free mineral and aggregate sizing

Mobile convenience for the secondary and tertiary crushing of materials such as recycled concrete, limestone, soft ores and more...

Download Brochure
Focus Enviro | Specialists in material processing equipment
Focus Enviro | Specialists in material processing equipment

Introducing

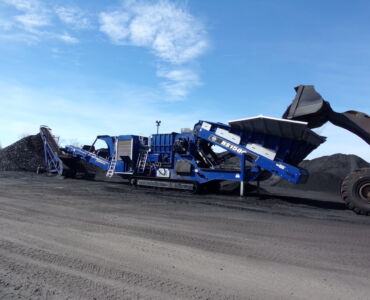

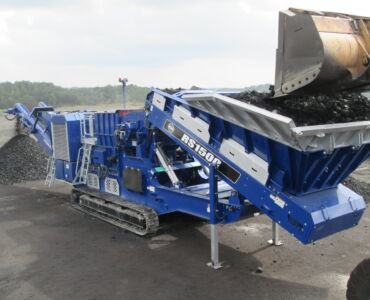

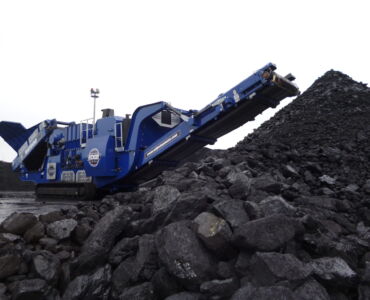

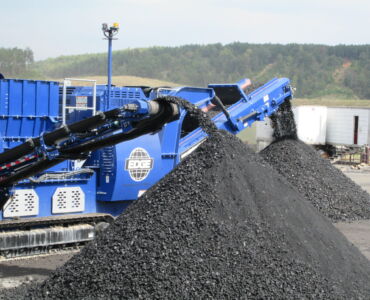

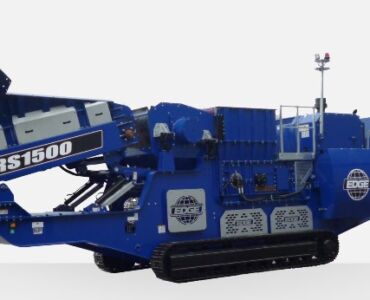

Innovatively designed, the EDGE RS1500 track roll sizer can process a wide range of materials including coal, lignite, bituminous, sub-bituminous hard to handle materials such as graphite electrodes to sticky materials, friable materials, soft ores, limestone and limes, salts, glass, fertilizer, recycled concrete and tarmac. It’s robust designed is coupled with high manoeuvrability and small footprint, all of which ensures the RS1500 roll sizer as being a formidable option for the resizing of various materials in the harshest of environments.

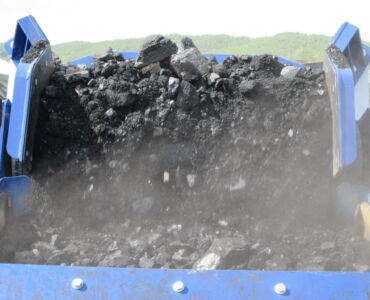

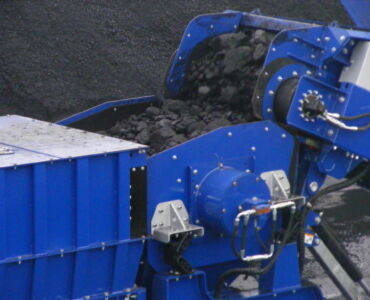

At the heart of the EDGE Roll-Sizer lies our innovative sizing chamber which houses two variable speed, reversible roller shafts for accurate piece sizing both of which are independently driven and controlled via the HMI Control Panel.

The material out size can be easily and quickly adjusted via the control panel. The shafts are designed to grab the feed material and reduce it to the desired product size whilst creating the minimum of fines. The chamber employs an intelligent overload and asset protection system to prevent overload and protects the roller shafts against tramp metal or trapped material.

This vital design feature dramatically reduces maintenance costs and downtime. Capital return is ensured via the EDGE RS1500’s low operating costs and minimum generation of waste fines.

VIEW GALLERY

Key Highlights

Quick design feature overview

Produces less fines than any other similar product on the market such as an impactor or jaw crusher

The Intelligent overload and asset protection system ensures high throughput and minimum downtime

A single deck, two bearing pre-screen allows fines to by-pass the chamber, increasing processing efficiency and throughput

The Caterpillar C9 engine offers full torque whilst only consuming 25-30 litres per hour

The tooth rotor design allows undersize material to pass through the precision designed shafts increasing product throughput

Application versatility is provided via component adjustments such a roll speed, gap settings, programme settings, screen media and belt speeds

Applications

The RS1500 is an ideal solution when working with the following applications

  • Aggregate

  • C & D Waste

  • Coal, Lime, Ores

Specification

Weight: 36 Tonne

  • Transport length: 18.1m
  • Transport width: 3m
  • Transport height: 3.4m
  • Working length: 18.1m
  • Working width: 4.6m
  • Working height: 3.4m
