TRM622

SMART. EFFICIENT. SEPARATION

High production portable wheeled mounted trommel

Download Brochure
Focus Enviro | Specialists in material processing equipment
Focus Enviro | Specialists in material processing equipment

Introducing

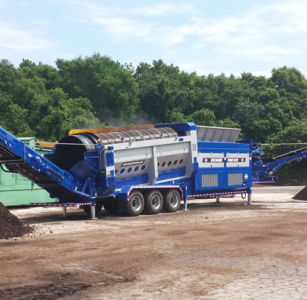

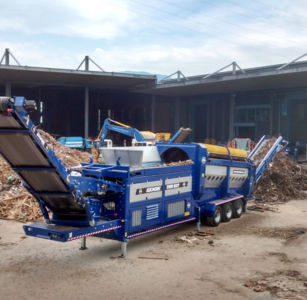

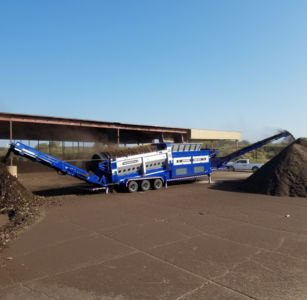

The EDGE TRM622 Mobile Trommel combines high production rates with ease of use in a robust, portable and versatile screening plant that is ideal for applications such as top soil, recycling, composting and is proven in construction and demolition waste.

Incorporates impressive design features such as 2m X 6.9m (6’ X 22’) long screening drum and a 180° radial fines conveyor with a discharge height of up to 5.9m (16’10”). A unique load sensing hydraulic drive system, eco-power saving functionality and a user friendly HMI control panel enabling easy adjustment to suit varying applications. Also available on a track mounted chassis, visit the TRT622 page.

VIEW GALLERY

Key Highlights

Quick design feature overview

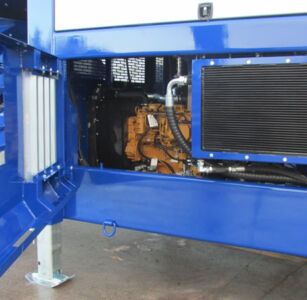

fuel consumption 12-15litres (3-4usg) per hour @ 100% load.

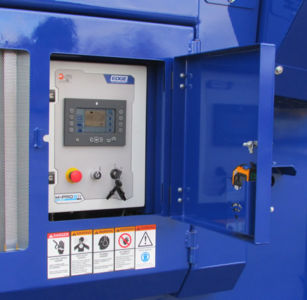

hmi control panel provides easy fine tuning for accurate application performance

unique load sensing and eco-power saving functionality ensured efficient operation

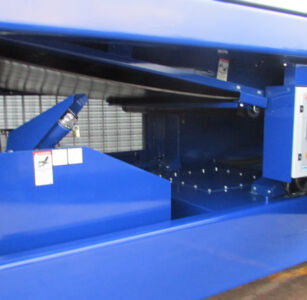

material spillage and bridging combated via steep sided hopper sides & 1500mm wide collection conveyor

2m (6’9”) x 6.9m (22’6”) long drum provides a large screening area

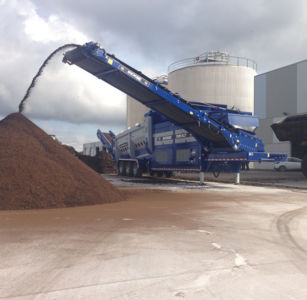

Radial fines conveyor with the ability to slew 180° creates impressive stockpile volumes

WHEN TO TROMMEL

The purpose of any screening operation is separating an incoming product stream into two or more fractions based on size. But which separation technique provides the most efficient separation process.

Trommel screens provide the most efficient separation technique in the following applications especially if there is the presence of moisture, paper, wood chip, plastic or clay.

  • 1

    Moisture

  • 2

    Paper

  • 3

    Wood Chip

  • 4

    Plastic or Clay

Applications

The TRM622 is an ideal solution when working with the following applications

  • Aggregate

  • C & D Waste

  • Coal, Lime, Ores

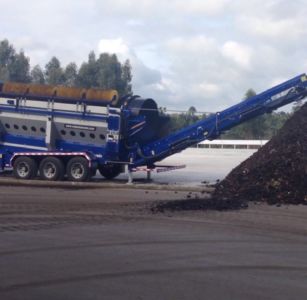

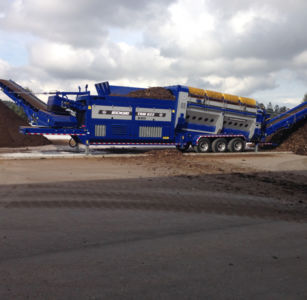

  • Compost

  • MSW

  • Mulch

  • Sand & Gravel

  • Topsoil

  • Wood

Specification

Weight: 32 Tonne (35.2UST)

  • Transport length: 18.4m (60’4”)
  • Transport width: 2.9m (9’5”)
  • Transport height: 4.1m (13’6”)
  • Working length: 27.7m (90’9”)
  • Working width: 2.9m (9’5”)
  • Working height: 5m (16’5”)
