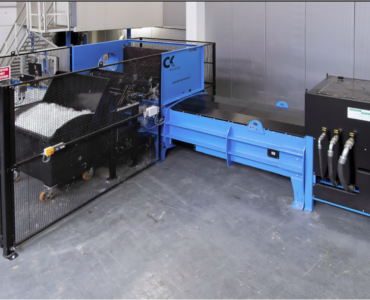

CKTR121XL

Twin ram fully automatic baler

The CKTR121XL is a fully automatic twin-ram baler designed to produce bales of multiple materials.

Download Brochure
Focus Enviro | Specialists in material processing equipment
Focus Enviro | Specialists in material processing equipment

Introducing

The high density baler produces a large mill size bale which reduces strapping, wrapping, handling and transport costs.

Key Highlights

Quick design feature overview

Automatic wire tying or plastic strapping

Multiple material programmes

Heavy duty shearing system with rotatable knives

Replaceable Hardox® liners in baling chamber

Left or right hand ejecting options

Machine elevated for ease of maintenance and cleaning

Specification

Baler Dimensions

  • Height (mm)
  • Width (mm)
  • Length (mm)
  • 2550
  • 4750
  • 12000

Other Dimensions

  • Feed Opening Width (mm)
  • Feed Opening Height (mm)
  • Bale Height
  • Bale Width
  • Bale Length
  • 2250
  • 1060
  • 1150
  • 1150
  • 1500

80 T Compaction Force 22kW

  • Cycle time without materials (sec)
  • Specific pressure at face of press-plate (t/m2)
  • Volumetric throughput RDF (m3/hr)
  • Bale weight RDF
  • Estimated throughput RDF @120kg/m3
  • Volumetric throughput cardboard (m3/hr)
  • Bale weight cardboard
  • Estimated throughput cardboard @35kg/m3
  • 34
  • 68
  • 125
  • Up to 1200 kg
  • Up to 15t/hr
  • 186
  • Up to 850 kg
  • Up to 7t/hr

80 T Compaction Force 37kW

  • Cycle time without materials (sec)
  • Specific pressure at face of press-plate (t/m2)
  • Volumetric throughput RDF (m3/hr)
  • Bale weight RDF
  • Estimated throughput RDF @120kg/m3
  • Volumetric throughput cardboard (m3/hr)
  • Bale weight cardboard
  • Estimated throughput cardboard @35kg/m3
  • 18
  • 68
  • 167
  • Up to 1200 kg
  • Up to 20t/hr
  • 257
  • Up to 850 kg
  • Up to 9t/hr

120 T Compaction Force 59kW

  • Cycle time without materials (sec)
  • Specific pressure at face of press-plate (t/m2)
  • Volumetric throughput RDF (m3/hr)
  • Bale weight RDF
  • Estimated throughput RDF @120kg/m3
  • Volumetric throughput cardboard (m3/hr)
  • Bale weight cardboard
  • Estimated throughput cardboard @35kg/m3
  • 20
  • 102
  • 208
  • Up to 1300 kg
  • Up to 25t/hr
  • 314
  • Up to 950 kg
  • Up to 11t/hr

120 T Compaction Force 75kW

  • Cycle time without materials (sec)
  • Specific pressure at face of press-plate (t/m2)
  • Volumetric throughput RDF (m3/hr)
  • Bale weight RDF
  • Estimated throughput RDF @120kg/m3
  • Volumetric throughput cardboard (m3/hr)
  • Bale weight cardboard
  • Estimated throughput cardboard @35kg/m3
  • 15
  • 102
  • 260
  • Up to 1300 kg
  • Up to 32t/hr
  • 380
  • Up to 950 kg
  • Up to 13.5t/hr
