Introducing

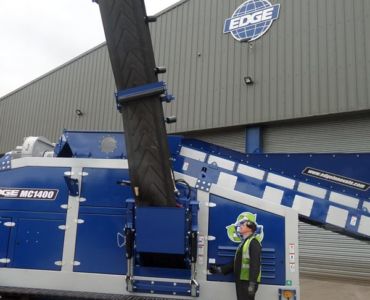

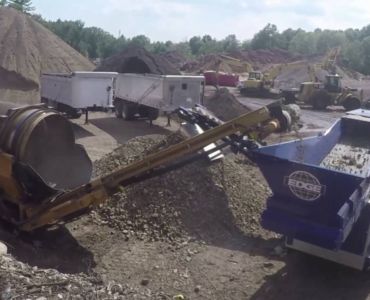

The EDGE MC1400 Windshifter provides operators the ability to extract impurities from highly contaminated material in just one pass.

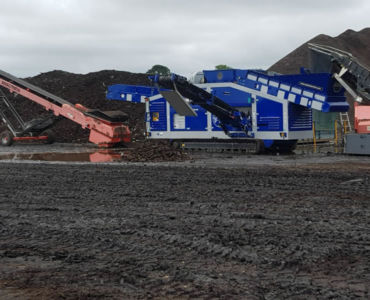

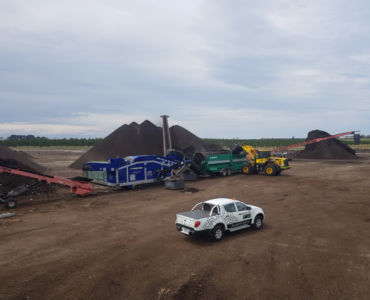

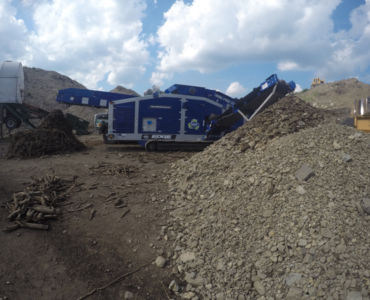

Utilizing controlled air as a separation medium, the MC1400 is the ideal solution for the cleaning of compost and construction & demolition waste fractions with its ability to separate heavy fractions from lights. With easily adjustable components such as fan speed, feed conveyor belt speed and drum positioning, the MC1400 has the capacity to handle a wide range of applications.

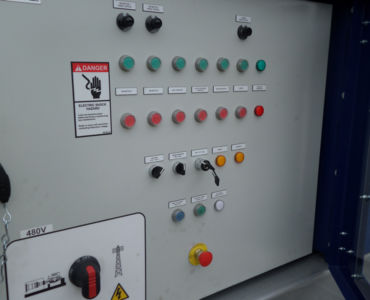

Available as track, semi-trailor or static chassis formats, the MC1400 can be powered via a diesel/hydraulic powerunit, diesel genset or direct electric.
Key Highlights
Quick design feature overview
4 stage separation process as standard (2 additional stages available)

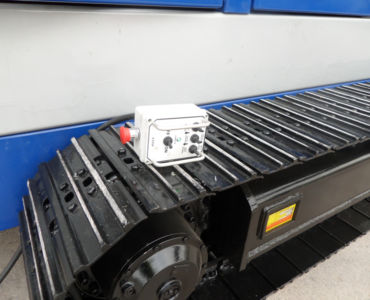

available as a track mounted, semi-trailer or static chassis formats

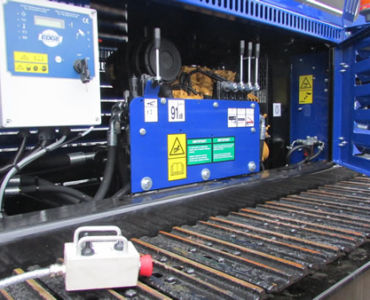

easy adjustable parameters for optimum production in various waste streams
complete airborne material separation provides superior final products
magnetic head pulleys separate ferrous metals from wood and aggregates etc
fuel consumption from just 10.9 litres (2.8 usg) per hour @ 100% load
Separation

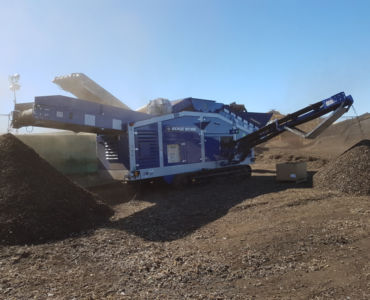

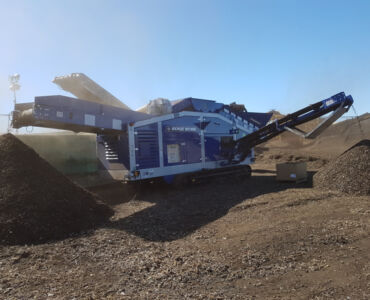

The MC1400 allows operators to separate commodities into four different fractions as standard; lights (plastic, paper, film) mid-weight (wood) and heavy fractions (aggregate, glass, etc.).
Ferrous metal is extracted via the overband magnet found on the heavy fraction discharge conveyor with the option of attaching an additional magnet to the mid-weight conveyor.
-
Input Material

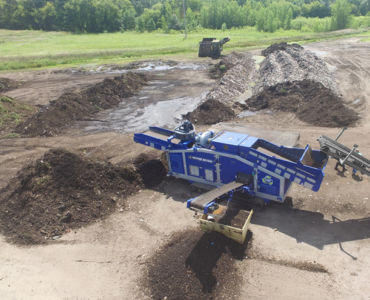

Contaminated Green Waste
-
2
Clean Aggregates
-
3

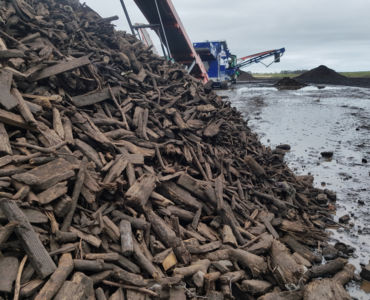

Clean Organics
-
4
Ferrous Metals
-
5

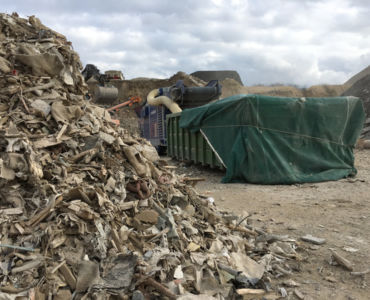

Plastic, Paper & Films
Applications
The use of controlled air as a separation medium provides extreme versatility and greater flexibility to that of mechanical separation techniques.
The MC1400 will enable operators to process once difficult materials, extracting the valuable commodities that can either be returned to the processing stream or can be sold on for a much higher sale price
-
Biomass
-

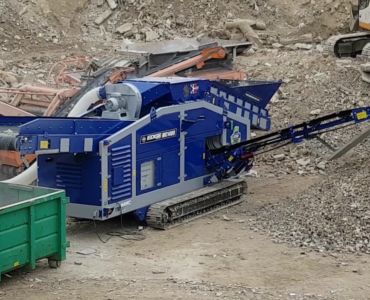

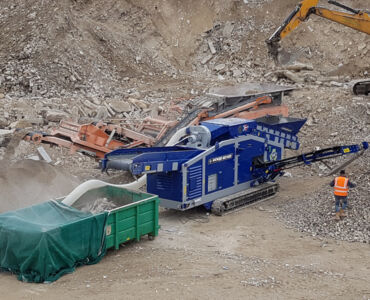

C & D Waste
-
Green Waste
-
Mulch
Specification
Weight: 16 Tonne (17.6UST)
- Transport length: 10.7m (35')
- Transport width: 2.8m (9')
- Transport height: 3.4m (11'2")
- Working length: 11.9m (38'11")
- Working width: 6.9m (22'6")
- Working height: 3.4m (11')
