Slayer XL

SLOW SPEED. HIGH TORQUE. WASTE SHREDDER

Slow speed, high torque shredder designed solution for rapid volume reduction

Download Brochure
Focus Enviro | Specialists in material processing equipment
Focus Enviro | Specialists in material processing equipment

Introducing

THE EDGE Slayer XL slow speed, high torque waste shredder is probably the most versatile waste shredder on the market with its ability to be deployed as either a primary or secondary shredder due to its highly robust design, high throughput and superior resistance to difficult to shred material.

The twin shaft design provides exceptional intake behaviour, reduces traditional wrapping of material such as wires, plastics and long fibers and lends itself to less wear and longer life expectancy. This combined with impressive design features such as tramp metal cycles and intelligent load sensing insures against asset damage and downtime.

With a small footprint, high performance and great manoeuvrability, the Slayer XL shredder is the ideal shredding solution for operators with limited space. With an average fuel consumption of just 25-30ltr/hr (7-8 USG) and reduce maintenance demands; the Slayer XL offers operators with the lowest running and maintenance cost shredder on the market.

VIEW GALLERY

Key Highlights

Quick design feature overview

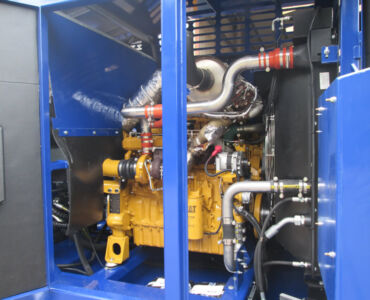

fuel consumption 25-30 litres (7-8usg) per hour

robust design provides high durability & ability to withstand difficult to shred materials

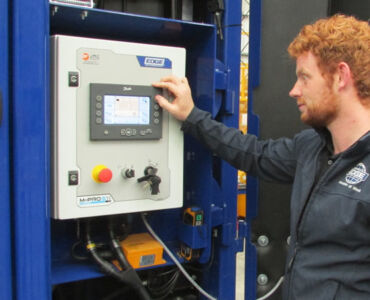

intelligent self-protecting control system with tramp metal cycles

twin shaft design promotes less wear, longer component life & self cleaning

loading height of 3.17m(10’5”)

1400mm (55’) wide discharge conveyor provides a discharge height of up to 5.1m (16’9”)

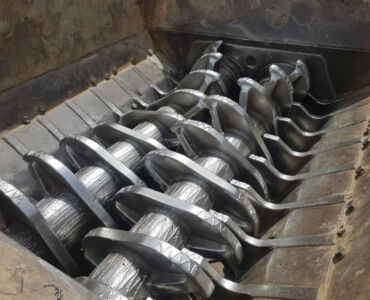

TWIN SHAFT DESIGN

The EDGE Slayer Series design is founded on the “two shafts are better than one principle”. A two shaft, slow speed and high torque design allows operators to process contaminated waste streams that may contain metal or non shreddable materials.

An intelligent control system combined with large heavy duty, slow speed automatic reversing shredding shafts prevents against high wear when encountering difficult to shred materials. This approach reduces both noise levels, power consumption and maintenance costs while achieving high throughput.

  • 1

    EXCEPTIONAL INTAKE BEHAVIOUR

  • 2

    LESS WEAR & LONGER COMPONENT LIFE

  • 3

    AUTOMATIC PROTECTION SYSTEM

  • 4

    SELF CLEANING

  • 5

    PREVENTS MATERIAL WRAPPING

Applications

The Slayer XL is an ideal solution when working with the following applications

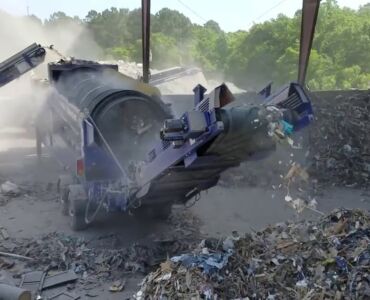

  • C & D Waste

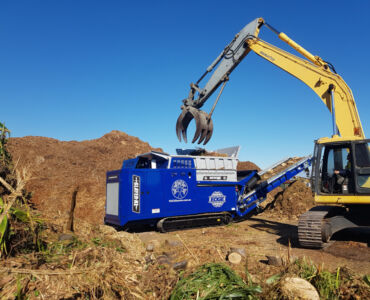

  • Green Waste

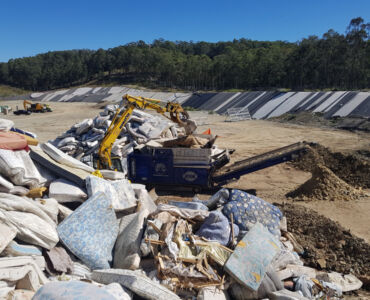

  • Matresses

  • MSW

  • Tyres

  • White Goods

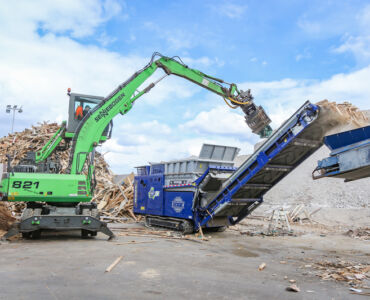

  • Wood

Specification

Weight: 22 TONNE (24UST)

  • Transport length: 13m (42’7”)
  • Transport width: 2.5m (8’3”)
  • Transport height: 3.1m (10’5”)
  • Working length: 12m (39’4”)
  • Working width: 12m (39’4”)
  • Working height: 3.6m (11’9”)
