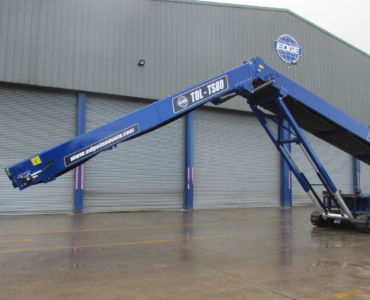

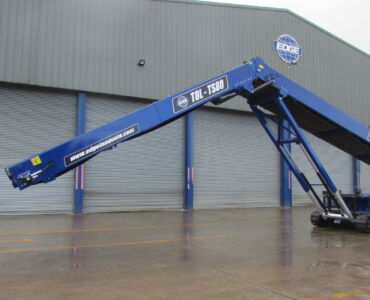

TOL-TS train off-loader track stacker

designed to unload train wagons safely and efficiently whilst making improvements on production rates & reducing recycle times

Download Brochure
Focus Enviro | Specialists in material processing equipment
Focus Enviro | Specialists in material processing equipment

Introducing

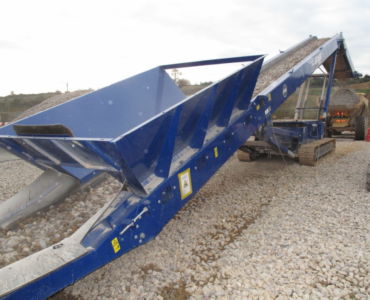

With the ability to operate in the harshest of environments, the EDGE train off loader offers operators’ reliability and consistent throughput at the specified performance indicated through extended working periods.

By incorporating the flexibility and manoeuvrability of our track stockpiler series with a unique innovative design; the train off loader minimises the need to double handle material and vastly improves turnaround times.

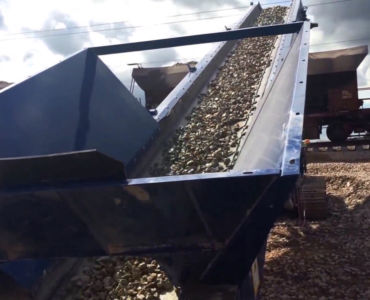

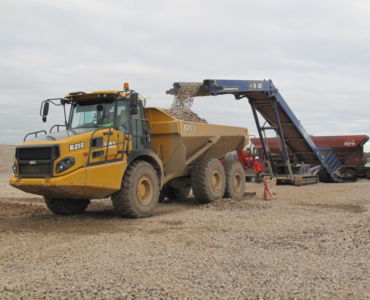

Providing huge flexibility, the TOL-TS enables operators to stockpile material as a conventional track stockpiler and to receive loads directly from train vessels or alternatively; load train wagons utilising its hydraulic fold down head section.

Key Highlights

Quick design feature overview

Eliminate double handling of material with wheel loader

Environmental benefits – reduced dust, emissions and noise

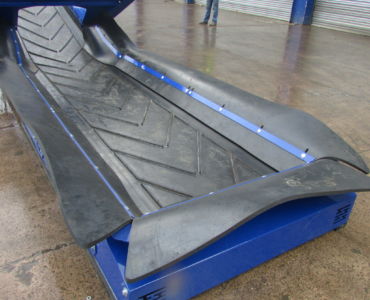

Hopper Capacity of 10.7m³ with hydraulic variable feed in height

Fuel consumption from 5 litres per hour - Variable power-source options; diesel/hydraulic powerunit, dual power and diesel genset

Hydraulic conveyor head fold down for more accurate material discharge and reduce dust creation

Variable speed 1200mm wide discharge conveyor ranging from 50ft to 80ft

Applications

The TOL-TS is an ideal solution when working with the following applications

  • Aggregate

  • C & D Waste

  • Coal, Lime, Ores

  • Compost

  • Sand & Gravel

  • Topsoil

  • Wood Biomass

Specification

Weight: 14 Tonne

  • Transport length: 12M
  • Transport width: 2.3M
  • Transport height: 2.7M
  • Working length: 25.4M
  • Working width: 2.3M
  • Working height: 7.3M
