TRT516

COMPACT. FLEXIBLE. SCREENING

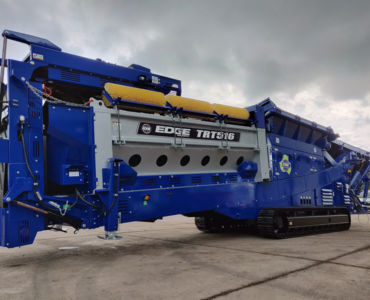

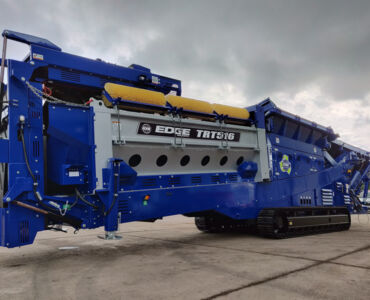

Track mounted trommel that combines quality screening results with a robust design

Download Brochure
Focus Enviro | Specialists in material processing equipment
Focus Enviro | Specialists in material processing equipment

Introducing

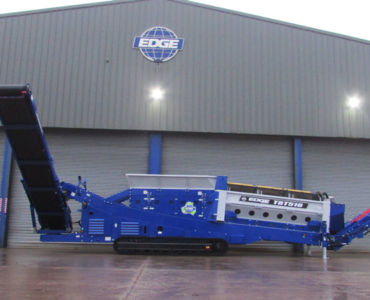

The perfect screening solution for mid-size operations with on-site space restrictions and for those wishing to regularly reposition their screen onsite. The EDGE TRT516 Track Trommel screen combines a robust durable unit with a quick & easy to transport design.

It is the ideal screening solution for the processing of compost, topsoil, domestic household waste and construction and demolition waste. Boasting a range of impressive design features such as a 4.9m (16’) long drum, intelligent load sensing and variable speed controls, the TRT516 trommel screener has the ability to produce superior fine materials in comparison to competing models.

There are many additional options available for this unit to meet the exact needs of the customer as well as ensuring optimum screening performance. For those operators seeking a wheel mounted unit, please see our EDGE TRM516.

VIEW GALLERY

Key Highlights

Quick design feature overview

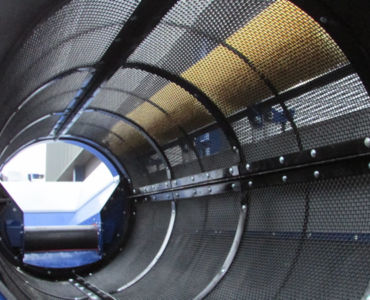

1.54m (5’) x 4.9m (26’) long screen drum

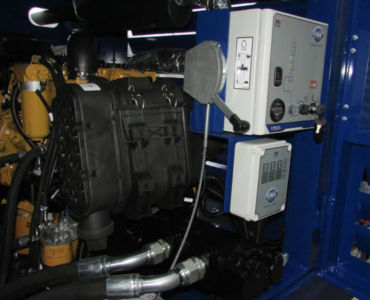

fuel consumption 12-15 litres (3-4usg) per hour @ 100% load

180° radial fines conveyor fitted as standard for improved stockpiling

pressure transducing technology prevents material overload

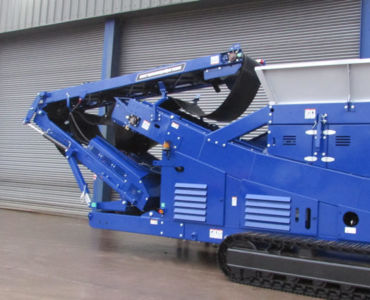

oversize conveyor provides a discharge height of up to 3.2m (10’7”)

radial fines conveyor creates a stockpile volume of up to 1310m³ (1714yds³)

WHEN TO TROMMEL

The purpose of any screening operation is separating an incoming product stream into two or more fractions based on size.

But which separation technique provides the most efficient separation process. Trommel screens provide the most efficient separation technique in the following applications especially if there is the presence of moisture, paper, wood chip, plastic or clay.

  • 1

    Topsoil

  • 2

    Compost

  • 3

    Mulch

  • 4

    Wood Chip

  • 5

    Domestic Waste

Applications

The TRT516 is an ideal solution when working with the following applications

  • Aggregate

  • C & D Waste

  • Coal, Lime, Ores

  • Compost

  • MSW

  • Mulch

  • Sand & Gravel

  • Topsoil

  • Wood

Specification

Weight: 26 Tonne (28.6UST)

  • Transport length: 15.5M (51’)
  • Transport width: 2.6M (8’7”)
  • Transport height: 3.48M (11’5”)
  • Working length: 23.6M (77’6”)
  • Working width: 2.6M (8’6”)
  • Working height: 5.37M (17’7”)
