CK450HFE.PC

For large volumes of waste

CK450HFE.PC is an excellent solution for distribution and logistic centres, retail stores, manufacturers and various industries with substantial volumes of waste.

Download Brochure
Focus Enviro | Specialists in material processing equipment
Focus Enviro | Specialists in material processing equipment

Introducing

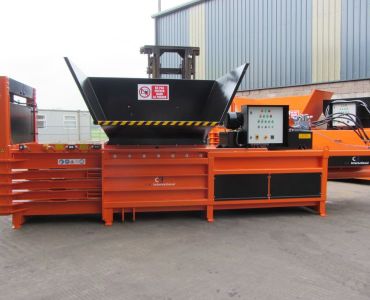

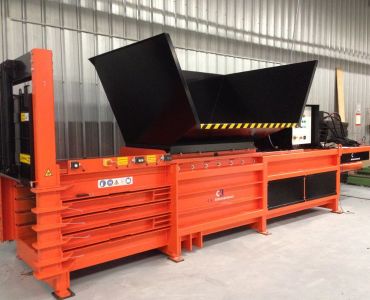

This machine comes with a Full Eject System (HFE), a Portcullis Door (PC) and 60T compaction force. In addition, it has 4 wire horizontal tying and an 11kW motor as standard for fast cycle times and operation. The press-plate is mounted on a Hardox® Castellated floor, thereby reducing maintenance costs and ensuring long life of the machine.

Key Highlights

Quick design feature overview

Full eject system for easy operation and to avoid cross-contamination

Hardox® Castellated Floor for low maintenance and long life

Advanced 4 wire horizontal tying system

Hydraulic Portcullis Door

Automatic start-up and bale full system

Up to 500kg bales of cardboard.

Specification

CK450HFE.PC

  • 4 x Steel Wires, Black Annealed
  • Bale Ejection System
  • Tying Direction
  • 3.5mm dia., 5.5m long
  • Full Eject
  • Horizontal

Baler Dimensions

  • Height (mm)
  • Width (mm)
  • Length (mm)
  • Weight (kg)
  • Feed Opening (L x W)
  • 2410mm (to top of standard hopper)
  • 1580
  • 7300
  • Approx. 7000
  • 1480 x 1040

Baler Performance

  • Compaction Force (tonne)
  • Cycle Time
  • Motor
  • Power Supply
  • Noise Level
  • 60
  • 60 sec / 42 sec / 30 sec
  • 11kW / 15kW / 22kW
  • 3 x 415V, 50Hz
  • 80dBA

Baler Dimensions

  • Height (mm)
  • Width (mm)
  • Length (mm)
  • Bale Weight Cardboard
  • Bale Weight Plastic
  • 750
  • 1100
  • 900 - 1300
  • Up to 500kg
  • Up to 550kg
