UNTHA RS Shredder

FOUR SHAFT SHREDDING FOR ULTIMATE RECYCLING PRECISION

Tailor your particle sizing, loading aperture, shredder speed, torque, cutter systems, perforated screens, seals and more…

Download Brochure
Focus Enviro | Specialists in material processing equipment
Focus Enviro | Specialists in material processing equipment

Introducing

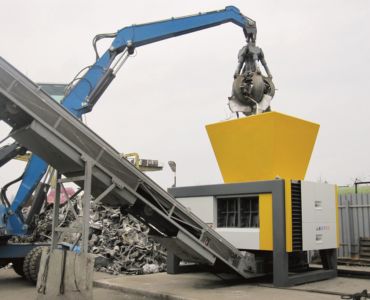

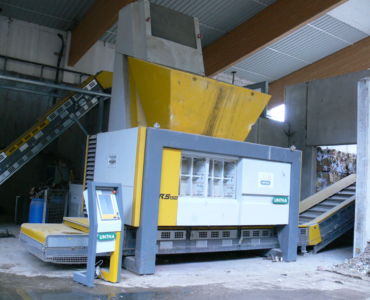

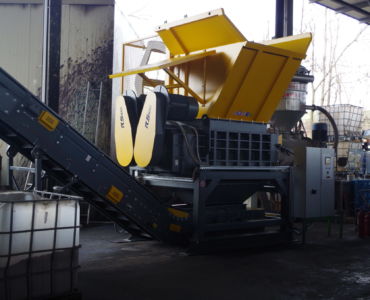

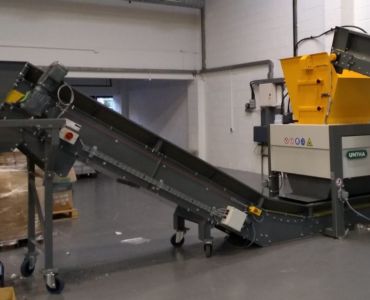

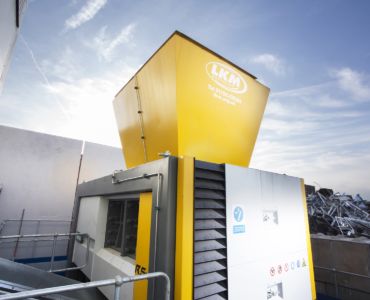

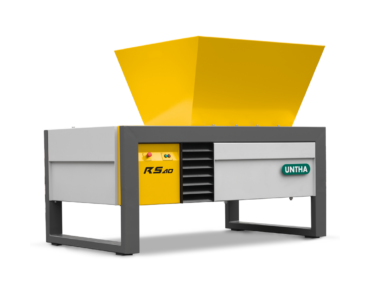

Used by recyclers large and small on a truly worldwide basis, UNTHA’s robust four shaft RS shredder series is equipped to handle even the toughest recyclable materials in the world.

Engineered for high availability and operational longevity – even when faced with unshreddables – this technology is engineered to run for decades. And equipped for continuous multi-shift operation with throughputs of up to 20tph, it remains efficient, safe and easy to maintain, every step of the way.

With six models within the range, there’s no such thing as a one-size-fits-all approach to recycling. From the compact RS30, to the severe duty RS150 that would make light work of bulky electronic appliances, refrigerators, metals and more, the beauty of the RS series, is choice.

Perfect for recycling and material liberation applications…right through to aerobic and anaerobic digestion applications.

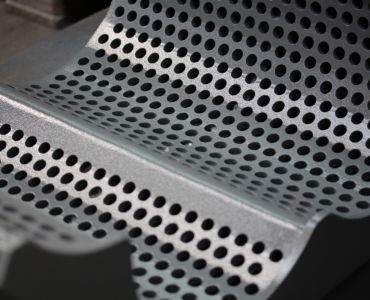

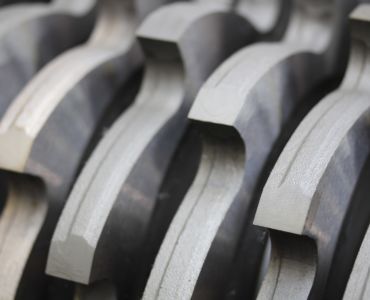

So, by working closely with UNTHA’s experts, here in Australia, you’re able to configure an RS shredder exactly to suit your requirements. From the production of a homogenous 100mm particle down to a refined 15mm fraction, talk to us about what’s possible. You can define the loading aperture, speed, cutting system, perforated screen, sealing variant, and more…

VIEW GALLERY

Key Highlights

Quick design feature overview

INPUT MATERIALS

  • 1

    Electronic scrap (e-scrap)

  • 2

    Confidential waste

  • 3

    Metals

  • 4

    Plastics

  • 5

    Organic waste

  • 6

    Medical and hazardous waste

  • 7

    Textiles

Applications

Ultra-configurable – design a shedder specifically to suit your recycling needs…

  • C & I Waste

  • Compost

  • Metals

  • MSW

  • Paper

  • Plastic

  • Scrap Metal

Specification

RS30

  • Drive Power (kW)
  • Cutting chamber (mm)
  • Speed (main shafts) U/min
  • Speed (sec shafts) U/min
  • Perforated screen (mm)
  • Weight (kg)
  • 11 | 15 | 22
  • 450 x 600
  • 23
  • 34
  • 15-40
  • 2000

RS40

  • Drive Power (kW)
  • Cutting chamber (mm)
  • Speed (main shafts) U/min
  • Speed (sec shafts) U/min
  • Perforated screen (mm)
  • Weight (kg)
  • 30 | 37 | 44
  • 750 | 1000 x 700
  • 24
  • 32
  • 15-40
  • 3300 | 3600

RS50

  • Drive Power (kW)
  • Cutting chamber (mm)
  • Speed (main shafts) U/min
  • Speed (sec shafts) U/min
  • Perforated screen (mm)
  • Weight (kg)
  • 44 | 50 | 60
  • 750 | 960 | 1230 x 700
  • 21-29
  • 32-43
  • 15-40
  • 2600-3200

RS60

  • Drive Power (kW)
  • Cutting chamber (mm)
  • Speed (main shafts) U/min
  • Speed (sec shafts) U/min
  • Perforated screen (mm)
  • Weight (kg)
  • 60 | 74
  • 960 | 1200 | 1440 x 860
  • 17-21
  • 21-25
  • 15-100
  • 4000-5300

RS100

  • Drive Power (kW)
  • Cutting chamber (mm)
  • Speed (main shafts) U/min
  • Speed (sec shafts) U/min
  • Perforated screen (mm)
  • Weight (kg)
  • 100 | 11 | 150
  • 1200 | 1500 x 1020
  • 17-28
  • 12-28
  • 30-100
  • 9000-12000

RS150

  • Drive Power (kW)
  • Cutting chamber (mm)
  • Speed (main shafts) U/min
  • Speed (sec shafts) U/min
  • Perforated screen (mm)
  • Weight (kg)
  • 4 x 45 | 75
  • 1500 x 1260
  • 15-30
  • 17-34
  • 50-100
  • 21000 | 22000
